- Size: 15
- Place of Origin: Zibo, Shandong, china
- Brand Name: United Tech
- Model Number: S
- Weight: 5000.000 kg

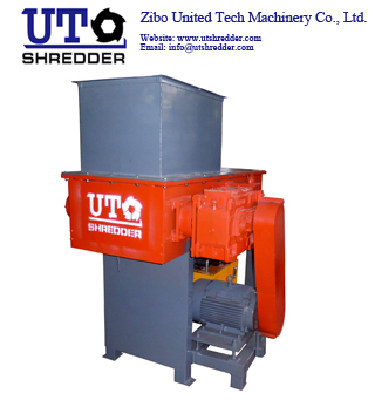

Single Shaft Shredder Introduction:
Zibo United Tech Machinery Co., ltd. - single shaft shredder is available to recycle wide range of material. It is an ideal machine for plastic, paper, wood, fiber, rubber, organic waste a wide variety of non-metallic materials. As per our customer’s requirements, such as the input size of materials. Capacity and the final output size etc. We could work out a suitable proposal for our clients. After being shredder by the machine, the output material could be used directly or go int to the next step of size reduction.
With the function of PLC microcomputer control system, it is possible to control automatically start, stop. Automatic reverse sensors to protect the machine against over loading and jamming. The output capability typically range between 300kg/hr -5,000kg/hr depending on the different model and different materials.
Single Shaft Shredder Application:
Plastic: Film; Jumbo Bag; PET Bottle; Plastic Barriers; Plastic Pipe; Plastic Boards
Hard Plastic: Plastic Lump (Purgings); Fiber, High Strength Engineering Plastics ( ABS, PC, PPS, etc.)
Wood:
Timber; Tree Root; Wood Pallets; Wood Package, etc.
Industrial Solid Waste:
Cable; Light Metal, like Aluminum Can, Aluminum Scrap, etc. White Goods, like TV Shell, Washing Machine Shell, Refrigerator Body Shell, Computer Shell, Circuit Board, etc. Solid Waste, like Household Garbage, Medicinal Waste, Industrial Waste, etc.
Others: Rubber, Textile, Fiber & Glass Products,Paper: etc.
- Size: 15
- Place of Origin: Zibo, Shandong, china
- Brand Name: United Tech
- Model Number: S
- Weight: 5000.000 kg
Model | S2250 | S2260 | S3060 | S3080 |
dimension L/W/H(mm) | 1780*1190*1690 | 1780*1290*1690 | 2455*1478*1700 | 2455*1678*1700 |
Cutting Chamber Size(mm) | 790*500 | 790*600 | 1200*600 | 1200*800 |
RAM(mm) | 500 | 600 | 600 | 800 |
Rotor Blade Diameter(mm) | 220 | 220 | 300 | 300 |
Rotor Ratate Speed (r/min) | 80 | 80 | 80 | 80 |
Rotor Blade Size(mm) | 35*35*23 | 35*35*23 | 40*40*25 | 40*40*25 |
Rotor Blade Quantity (PCS) | 20 4 | 24 4 | 30 4 | 42 4 |
Counter Quantity(PCS) | 2 2 | 2 2 | 2 | 2 |
Rotor Motor Power(KW) | 15 | 18.5 | 22 | 30 |
Material Return Power(KW) | 1.5 | 1.5 | 2.2 | 2.2 |
Net Weight(KG) | 1300 | 1400 | 1550 | 1950 |
Model | S4080 | S40100 | S40120 | S40150 |
dimension L/W/H(mm) | 2825*1747*1875 | 2825*2004*1875 | 2825*2564*1875 | 2825*2964*1935 |
Cutting Chamber Size(mm) | 1400*800 | 1400*1000 | 1400*1200 | 1400*1500 |
RAM(mm) | 800 | 1000 | 1200 | 1500 |
Rotor Blade Diameter(mm) | 390 | 390 | 390 | 390 |
Rotor Ratate Speed (r/min) | 80 | 80 | 80 | 80 |
Rotor Blade Size(mm) | 46*46*30 | 46*46*30 | 46*46*30 | 46*46*30 |
Rotor Blade Quantity (PCS) | 42 4 | 54 4 | 66 4 | 90 4 |
Counter Quantity(PCS) | 2 | 25 | 2 | 3 |
Rotor Motor Power(KW) | 37 | 45 | 55 | 75 |
Material Return Power(KW) | 2.2 | 5.5 | 5.5 | 5.5 |
Net Weight(KG) | 3500 | 4000 | 5000 | 6200 |
Model | S48150 | S48200 | S48250 | S66150 |
dimension L/W/H(mm) | 3255*4415*2720 | 3255*4415*2720 | 3255*4615*2720 | 4100*3450*3000 |
Cutting Chamber Size(mm) | 1650*1500 | 1650*2000 | 1650*2500 | 1550*1500 |
RAM(mm) | 1500 | 2000 | 2500 | 1500 |
Rotor Blade Diameter(mm) | 480 | 480 | 480 | 660 |
Rotor Ratate Speed (r/min) | 80 | 80 | 80 | 80 |
Rotor Blade Size(mm) | 60*60*30.5 | 60*60*30.5 | 60*60*30.5 | 60*60*30.5 |
Rotor Blade Quantity (PCS) | 90 4 | 114 4 | 144 4 | 126 4 |
Counter Quantity(PCS) | 3 | 4 | 5 | 3 |
Rotor Motor Power(KW) | 90 | 75 75 | 90 90 | 75 75 |
Material Return Power(KW) | 7.5 | 7.5 | 7.5 | 7.5 |
Net Weight(KG) | 11000 | 11000 | 12500 | 12100 |
Model | S66200 | S66250 | S66300 | S66400 |
dimension L/W/H(mm) | 4100*3950*3000 | 4100*4450*3000 | 4100*5500*3000 | 4100*6800*3000 |
Cutting Chamber Size(mm) | 1550*2000 | 1550*2500 | 1550*3000 | 1550*4000 |
RAM(mm) | 2000 | 2500 | 3000 | 4000 |
Rotor Blade Diameter(mm) | 660 | 660 | 660 | 660 |
Rotor Ratate Speed (r/min) | 80 | 80 | 80 | 80 |
Rotor Blade Size(mm) | 60*60*30.5 | 60*60*30.5 | 60*60*30.5 | 60*60*30.5 |
Rotor Blade Quantity (PCS) | 158 4 | 225 4 | 291 4 | 363 4 |
Counter Quantity(PCS) | 4 | 5 | 6 | 8 |
Rotor Motor Power(KW) | 90 90 | 110 110 | 132 132 | 160 160 |
Material Return Power(KW) | 7.5 | 7.5 | 7.5 | 7.5 |
Net Weight(KG) | 12500 | 14200 | 15500 | 17500 |
