Equipment use:

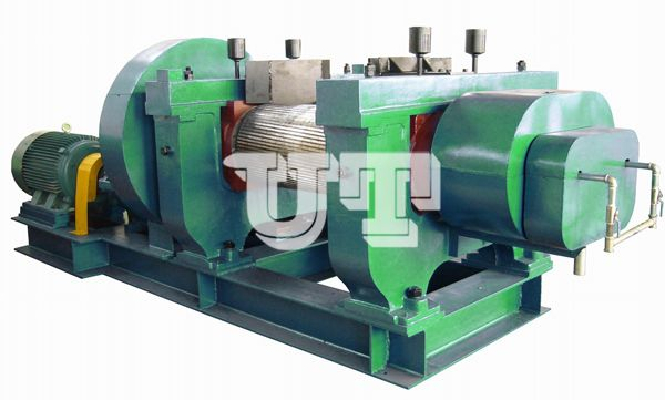

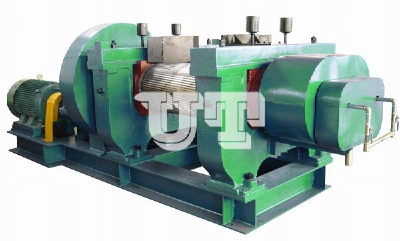

Gel breaking machine is mainly used for coarse crushing of the rubber blocks are further broken, to separate the rubber and steel wire, and ultimately get about 10-40 mesh particles or powder, steel wire tire rubber powder production special crushing equipment.
Equipment: base, frame, front and rear roller, reducer, motor, and safety gasket, lubrication system, transmission system; the temperature regulating device and electric control system.
Characteristic：
Reducer using 1000 type of reducer, transmission power, high efficiency, low noise, long service life, one year warranty period;
The frame adopts cast steel material, with enough strength and rigidity, one year warranty period;
3 roller with steel material, the working face with wear-resistant welding welding, surface hardness and wear resistance, internal strength and high resistance to bending fracture resistance, axial hardening treatment and improve the abrasion resistance, the use of long life, to overcome the general roller welding cracking, leaking out, block, fault and the ills, roller one years normal use broken Baohuan.
The broken plastic machine cast steel roller groove parts of the processing technology of the technical reform of the, position groove welding before the first planer groove welding process, without the addition of reinforced materials, so as to avoid the welding defects of reinforced material easy to fall off, reducing the customer trouble in use, improves the production efficiency.
And temperature regulating system adopts open type temperature regulating system, through to the inside of the roller injection cooling water to regulate the temperature of the roller to meet the process requirements, has the advantages of simple structure, good cooling effect, convenient for detecting the water temperature, not easy to plug the advantages.
The production efficiency is improved.
Seventhly, reasonable design, stable performance, excellent quality, convenient operation, long life, low noise, no pollution, is the ideal environmental regeneration equipment resources.
Main technical parameters:
Groove (groove) roller working diameter 510mm
Working diameter of light roller 560mm
The working length of the roller 800mm
Production efficiency 420-500kgs/hour
Voltage / frequency 380V/50hz
Motor speed 980r/min
Reduction ratio 35.5
Motor power 132KW
Exterior size (mm) (L * w * h) 5300*2300*1700mm
Equipment weight 20mts
